Custom Thermocouples

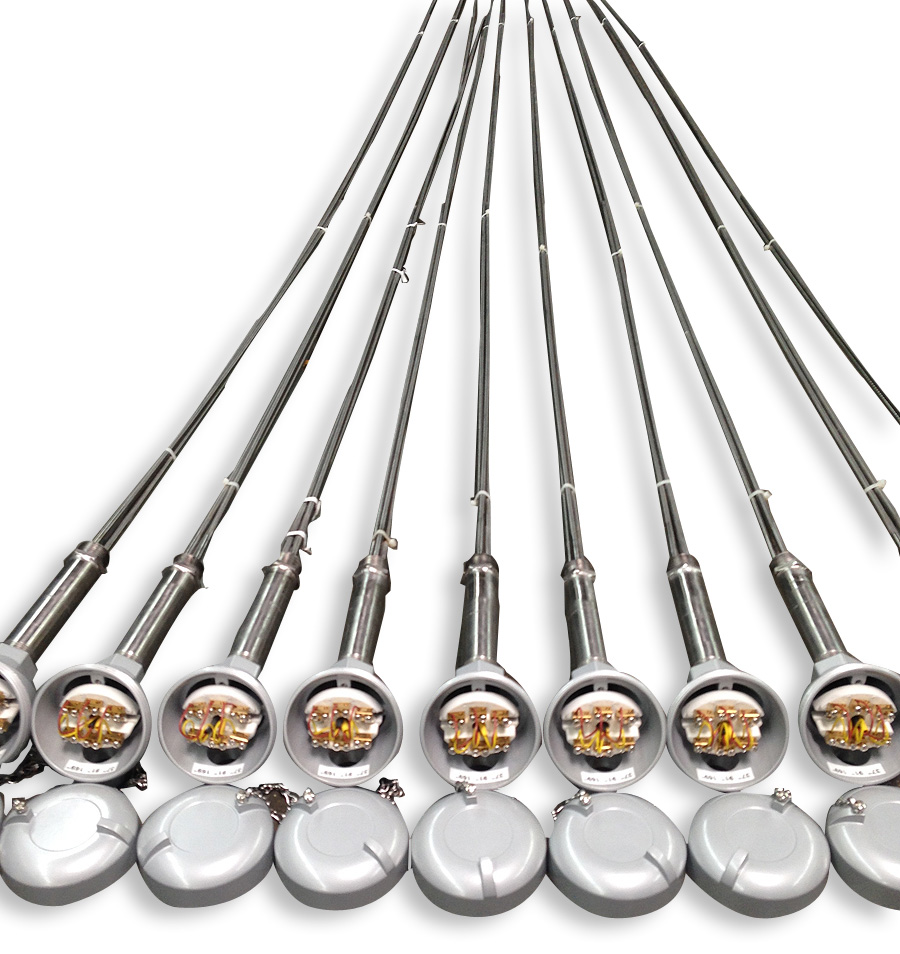

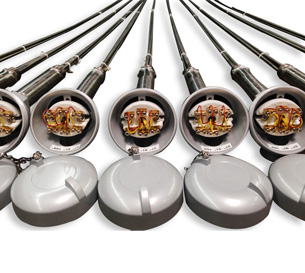

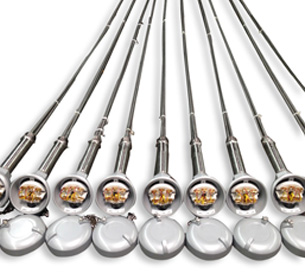

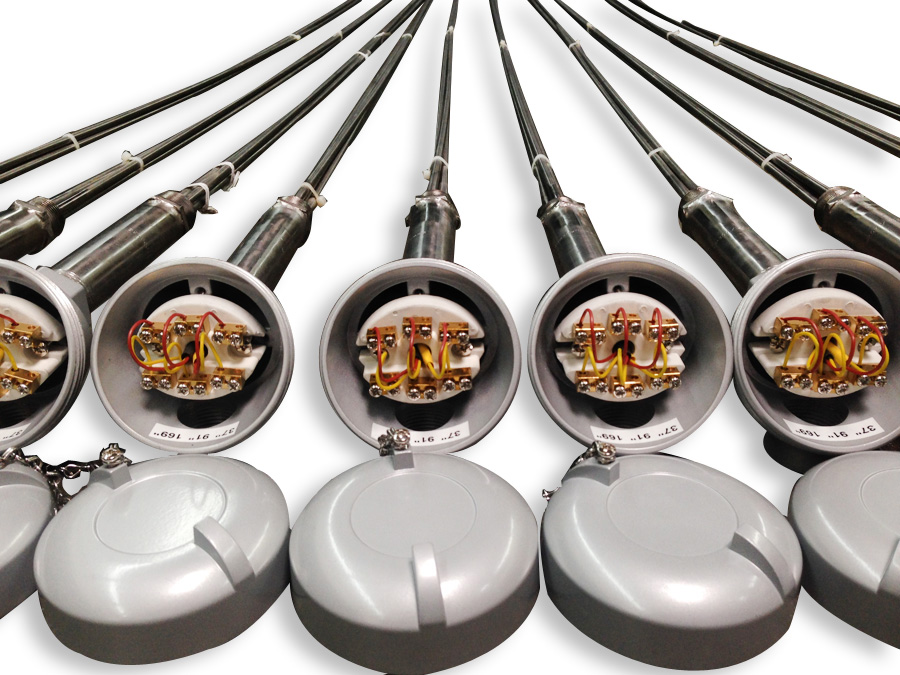

At International Super Sensors, we are a recognized industry leader for the manufacturing of the finest quality custom thermocouples. Our products cover nearly every variety of thermocouple type, coating, shape, design, and probe configuration. From simple thermocouples to complex multipoint assemblies, our products deliver high-tech solutions for the most demanding industries. We design, manufacture, and deliver thermocouples that meet the most stringent standards of quality with some of the industry’s best lead times.

The varieties of thermocouple types that we produce include types B, C, E, J, K, N, R, S, and T. These thermocouples are composed of quality materials and blends, including platinum, rhodium, chromel, constantan, iron, alumel, and numerous others. Whether our customers need adjustable, fixed, straight run, 45 degree or 90 degree thermocouples, we produce custom products in virtually any junction type, coating, lead style, and tip shape.

We manufacture exposed, grounded, ungrounded, ungrounded common, and ungrounded isolated junctions in coatings that range from alumina, braided vitreous, fiberglass, and metal to PFA, Silica, and porcelain enamel. Available lead styles include miniature jack, miniature plug, pin leads, standard plugs, stripped lengths, and high and ultra-high temperature plugs.

Our versatility also extends into probe configuration, with options available that include air probes, bayonets, bells, grommets, nozzles, plates, ribbons, rings, rollers, washers, and many others. We work with some of the highest quality materials on the market to construct sheaths, covering many varieties of stainless steel as well as flexible armor, mullite, tantalum, and Hastelloy, among others. Our thermocouples are uncommonly robust and resilient, available in abrasion, acid, corrosion, and vibration resistant varieties. They can withstand operating temperatures ranging from -320°F all the way to 3200°F.

The quality of our products is reflected in the wide scope of industry standards we meet or exceed. We are fully ISO 10012-2003 and ISO 9001:2008 certified, and our products also met all relevant ANSI, AMS, ASTM, BAC, and DPS standards. From prototypes, specialty jobs, and low volume runs to large scale, full production jobs, we deliver our thermocouples within typical lead times of just 7 to 10 business days, with rush and emergency services available.

To find out more about our comprehensive variety of custom thermocouples, please contact us directly.

Request a Quote

Custom Thermocouple Specifications

Thermocouple Type: Type B (Platinum-30% Rhodium)
Type C (Tungsten-5% Rhenium)
Type E (Chromel-Constantan)

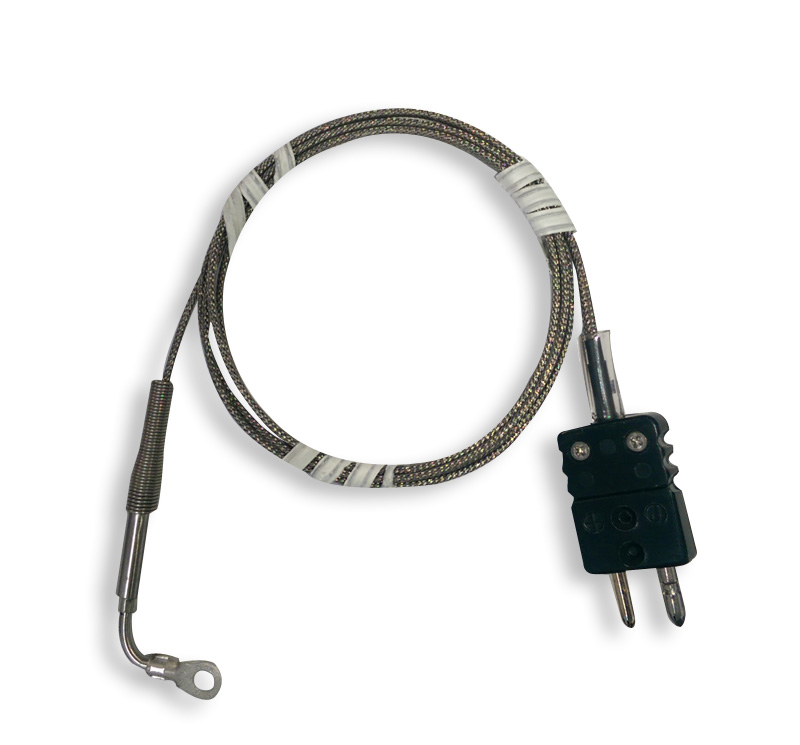

Type J (Iron-Constantan)
Type K (Chromel-Alumel)
Type N (Nicrosil-Nisil)
Type R (Platinum-13% Rhodium)
Type S (Platinum-10% Rhodium)
Type T (Copper-Constantan)

Junction Type: Exposed
Grounded
Ungrounded
Ungrounded Common
Ungrounded isolated

Coating: Alumina
Braided Vitreous
CEFIR
Ceramic
ETFE
FEP
Fiberglass
Fluoropolymer
Glass
High Temp Glass
Metal
Mineral
Mullite
Nylon
PFA
Polymide
Polyvinyl Chloride
Porcelain Enamel
PTFE
Silica
TFE
Vitreous Silica

Lead Style: Miniature Jack
Miniature Plug
Pin Leads
Spade Leads
Standard Jack
Standard Plug
Stripped Length
High Temperature Plug
Ultra High Temperature Plug

Probe Configuration: Air Probe
Bayonet
Bell
Grommet
Insertion Probe
Magnet
Needle
Nozzle
Pipe Clamp
Plate
Ribbon
Ring
Roller
Shim Stock
Surface Mount
Under the Band
Washer

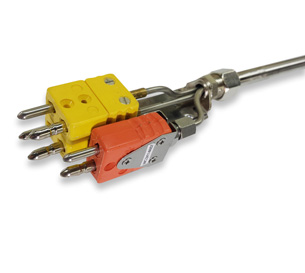

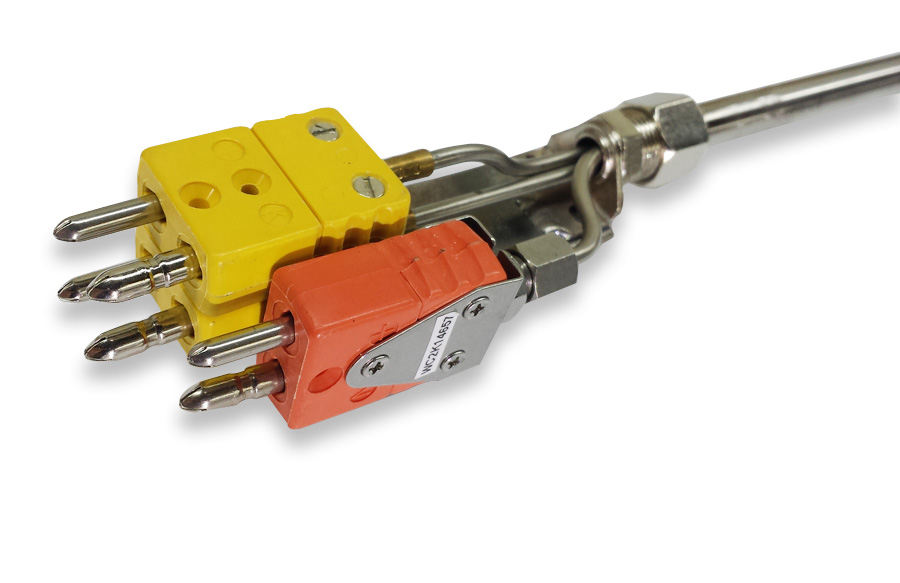

Thermocouple Design: Adjustable
Fixed
Straight Run
45 Degree
90 Degree

Tip Shape: Chisel
Flat
Pointed
Round

Sheath Material

Stainless Steel

Alloy
601
702
Alumina
Flexible Armor
Inconel 600
Molybdenum
Mullite
Tantalum
Hastelloy

End Fittings

Compression

1/8th NPT – 1 inch NPT

Brass
Stainless Steel

Features: Assemblies
Calibrated
Cement On
Ceramic Body
Connectors
Disposable
Field Cuttable
Hand Held
Heads
Heavy Duty
High Pressure
Housings
Insulators
Miniature
Overbraid
Sheaths
Spring Coiled Retractable
Thermowell
Washable
Waterproof/ Watertight

Characteristics: Abrasion Resistant
Acid Resistant
Corrosion Resistant
Vibration Resistant

Accuracy: Most of our thermal couples are calibrated with AMS 2750 Revision E

Operating Temperature: Min -320°F
Max 3200°F

Probe Diameter: Min .020 in
Max .500 in

Production Volume: Specialty Production Shop
Prototype
Low Volume
Small Run
High Volume
Large Run
Long Run
Large Scale Production Volume Run

Typical Lead Times Available: 7-10 business days
Rush Service is available
Emergency Service is Available

Additional Information

Intended Application: Artillery
Deicing
Engines
Furnaces
Gages
Gas Turbine
Heat Treating
Laboratories
Medical Equipment
Oven Temperature Control
Packaging Equipment
Plastics
Plating
Refrigeration
Vacuum Furnace

Industry Focus: Aerospace
Automotive
Chemical
Food Processing
Manufacturing
Marine
Medical
Petrochemical
Pharmaceutical

Industry Standards: ISO 10012-2003
ISO 9001:2008
ANSI/ NCSL Z540-.3-2006
AMS 2750E or Latest Revision
ASTM E230-12
ASTM E 220-07a
BAC 5621K
DPS 1.700W
23401M
